CNC Machining Centers in the Same Catalogue
Alongside the press lines, the manufacturer's official catalogue carries a CNC machining center range: vertical, horizontal and gantry machining centers, turning-and-milling compound machines and high-speed drilling centers. It is a secondary line next to the presses — the range is summarised on this one page, from the manufacturer's published series tables, so press buyers who also machine die plates, fixtures and parts can see the whole catalogue in one place. Full model datasheets are supplied on request through the contact page.
VCE Vertical Machining Center
Four models (855-1580), X travel 800-1,500 mm, BT40/BT50 spindles, ±0.005/300 mm positioning, 24-tool disk magazine.
VCN Vertical Machining Center
Six models (855-1580), X travel 800-1,500 mm, two-line-one-hard rail design, ±0.005/300 mm positioning on the 855 and 1165 (0.008 mm, as printed, on the other four models).
HCN Horizontal Machining Center
Four models (50-100), X travel 1,100-1,700 mm, worktables 500 x 500 to 1,000 x 1,000 mm, loads to 3,000 kg.
HNN / HRC Gantry Machining Centers
HNN X travel 1,500-3,000 mm; HRC X travel 1,600-4,000 mm with workpiece loads to 12,000 kg.

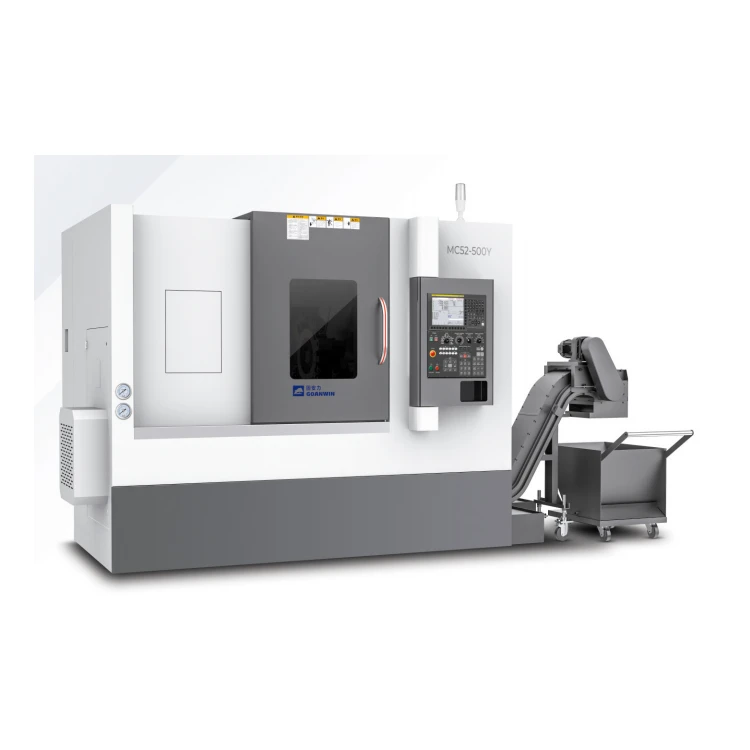

MC Turning-and-Milling Compound Machine
Six models, turning lengths 500-3,000 mm, spindles to 4,500 rpm, BMT servo power turrets, Y-axis and tailstock.
G High-Speed Drilling Center
Three models, 12,000 rpm spindle (15,000/20,000 rpm options), 48 m/min rapids, 1.3-second tool change.
Published Range Summary
| Family | Models | Key published figures |
|---|---|---|
| VCE vertical machining center | VCE-855 / 1160 / 1370 / 1580 | X travel 800-1,500 mm; Y 550-800 mm; Z 550-700 mm; spindle motor 7.5-15 kW; table 1,000 x 550 to 1,600 x 800 mm; positioning ±0.005/300 mm; repeatability ±0.003 mm; disk magazine 24T; BT40/BT50 |
| VCN vertical machining center | VCN-855 / 970 / 1165 / 1270 / 1370 / 1580 | X travel 800-1,500 mm; spindle motor 7.5/11 to 15/18.5 kW; positioning ±0.005/300 mm on the 855 and 1165 (0.008 on the other four models, as printed); repeatability ±0.003 mm on the 855 and 1165 (0.005 on the other four, as printed); disk magazine 24T |
| HCN horizontal machining center | HCN-50 / 63 / 80 / 100 | X travel 1,100-1,700 mm; worktable 500 x 500 to 1,000 x 1,000 mm; max. load 600-3,000 kg; spindle 6,000-8,000 rpm; positioning ±0.005/300 mm; repeatability ±0.003 mm |
| HNN gantry machining center | HNN-1510 / 1613 / 2012 / 3016 | X travel 1,500-3,000 mm; worktable 1,600 x 900 to 3,100 x 1,400 mm; max. load 2,000-4,000 kg; positioning ±0.005/300 mm; repeatability ±0.003 mm |
| HRC gantry machining center | HRC-1613B / 2015 / 2018 / 2518 / 3018 / 3020 / 3025 / 4025 | X travel 1,600-4,000 mm; max. payload 3,000-12,000 kg; positioning ±0.005/300 mm; repeatability ±0.003 mm; BT50 spindle, 6,000 rpm |
| MC turning-and-milling machine | MC42-500Y to MC95-3000Y (6 models) | Max. turning length 500-3,000 mm; spindle to 4,500 rpm; BMT servo power turrets; Y-axis ±50 mm; tailstock fitted |
| G high-speed drilling center | G-600Z / G-600L / G-700L | X travel 600-700 mm; spindle BT30, 12,000 rpm (15,000/20,000 rpm optional); rapids 48/48/48 m/min; tool change 1.3 s; positioning ±0.005/300 mm |
A representative detailed read — the VCE vertical machining center, one family of the range — in the manufacturer's published figures: X axis travel 800-1,500 mm by model, Y travel 550-800 mm, Z travel 550-700 mm; spindle nose to table 120-670 mm on the VCE-855, widening to 160-860 mm on the VCE-1580; spindle motor 7.5-15 kW across the four models; net weight about 5,200 to 12,000 kg. Controllers across the CNC range are listed as GOANWIN / MITSUBISHI / FANUC in the manufacturer's tables, and the specific control fitted is confirmed in the quotation for the model you select.
Frequently Asked Questions
Why are machining centers on a press manufacturer's site?
They are part of the same manufacturer's official catalogue. A stamping plant machines its own die plates, fixtures and spare parts; this page summarises the range so both equipment families can be quoted by one supplier.
Are full CNC datasheets available?
Yes — the summary above is the published range level, transcribed from the manufacturer's series tables. Model-by-model datasheets (axis travels per model, spindle data, floor plans) are sent on request via the contact page.
Which control systems are offered?
The manufacturer's CNC tables list GOANWIN, MITSUBISHI and FANUC controllers; the specific control fitted is confirmed in the quotation for the model you select.
Can machining centers be ordered together with presses?
Yes — they are one manufacturer's catalogue. Send both requirements in one enquiry; the quotation answers for the models enquired about.
